Bluestone Home » Service » Purchase Parts » BCIM1000 |
BCIM1000 |
|
BCIM1000 |
|
|
|
|
Switch View:
|
Switch View:

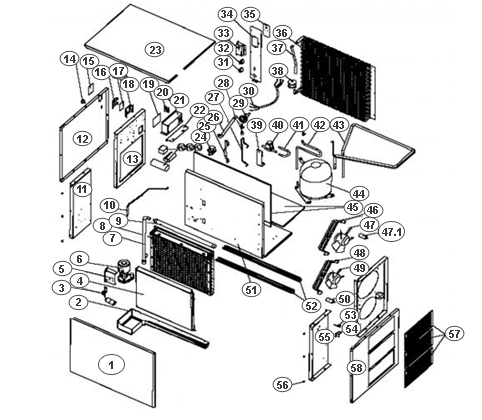

0
Part #: 1864509200
Gasket/Washer of water inlet connector
1
Part #: 1860204801
Front panel
2
Part #: 1864802401
Water trough
3
Part #: 1880001701
Floater valve (replaces 1880001700)
4
Part #: 1864600503
Water curtain replaced by 1864600505
6
Part #: 1858904300
Pump
8
Part #: 1880026401
Evaporator
9
Part #: 1880002000
Water distributor tube
13
Part #: 1819777100
Left outer panel
14
Part #: 1854000600
Power switch
17
Part #: 1854240300

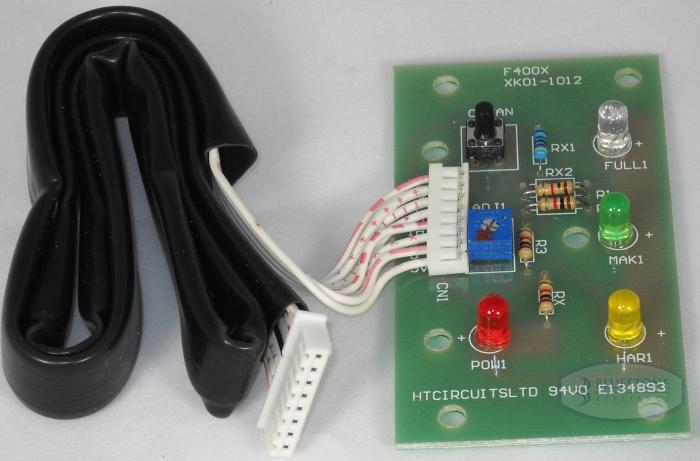

Button control panel
19
Part #: 1854205900
Main control panel replaced by (1854205901)
19.1
Part #: 1854800300
15A Fuse of Controller
19.2
Part #: 1851700701

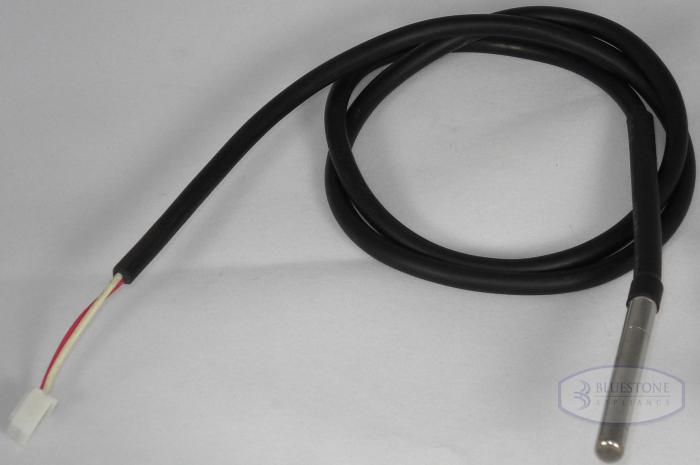

Temperature sensor of condenser
19.3
Part #: 1851700901

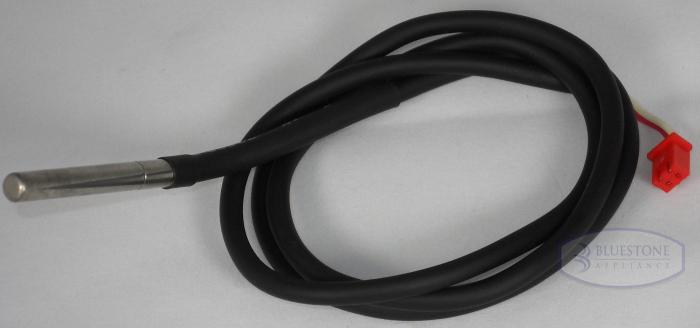

Temperature sensor of evaporator replaces 1851700900
20
Part #: 1854810100

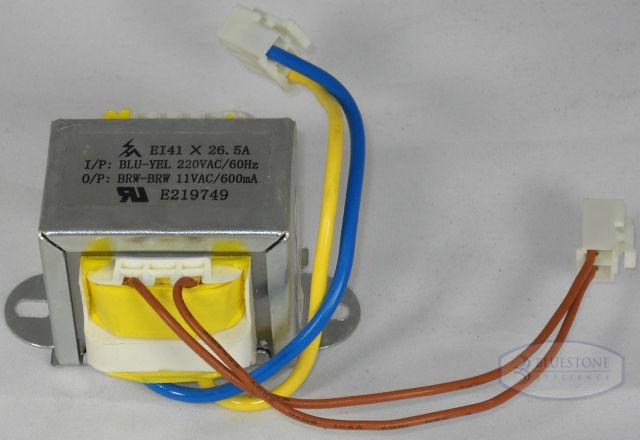

Transformer
23
Part #: 1860107900
Top panel
24
Part #: 1854700900
Water valve
29
Part #: 1854700700
Expansion valve
30
Part #: 1853703901
Wiring harness
31
Part #: 1861530802
Water outlet connector
32
Part #: 1864526600
Water inlet connector
36
Part #: 1885000802
Condenser
38
Part #: 1880008300
Drier
40.1
Part #: 1854704510
Hot gas valve body
40.2
Part #: 1854704520
Hot gas valve coils
44
Part #: 1858422800
Compressor
44.1
Part #: 1858461400
Relay
44.2
Part #: 1858442600
Start capacitor
44.3
Part #: 1858442800
Run capacitor
47
Part #: 1858203501
Fan motor Alt models 1858200900 and 1858243300
47.1
Part #: 1858290100
Fan capacitor 3uF
49
Part #: 1858202000
Fan motor
49.1
Part #: 1858290200
Fan capacitor 1.5uF
52
Part #: 1819777202
Right outer panel
53
Part #: 1871018500
Microswitch
57
Part #: 1864860201
Louver
|
|
|
|
