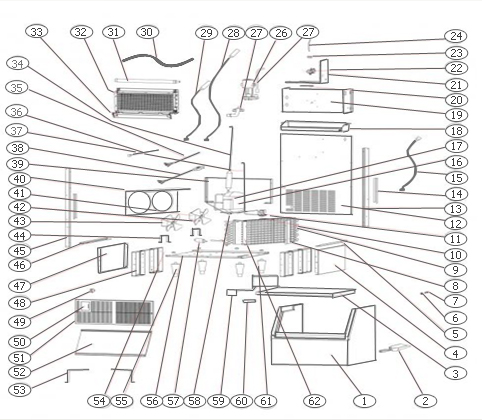

Diagram#	Image	Part No.	Description	Price	Qty

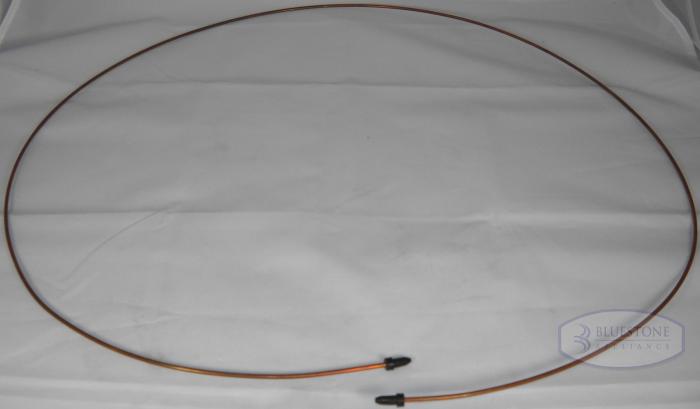

		1805000600	Capillary tube BCIM250	$36.00	T:0 and S:74
0		1864509200	Gasket/Washer of water inlet connector	$1.00	T:-1 and S:1852
2		1864800100	Ice scoop	$9.95	T:5 and S:3904
6		1864514100	Drain nut	$2.65	T:0 and S:154
7		1864536200	Drain plug	$1.20	T:0 and S:520
10		1854701210	Hot gas valve coil (042N4212)	$43.00	T:-2 and S:1197

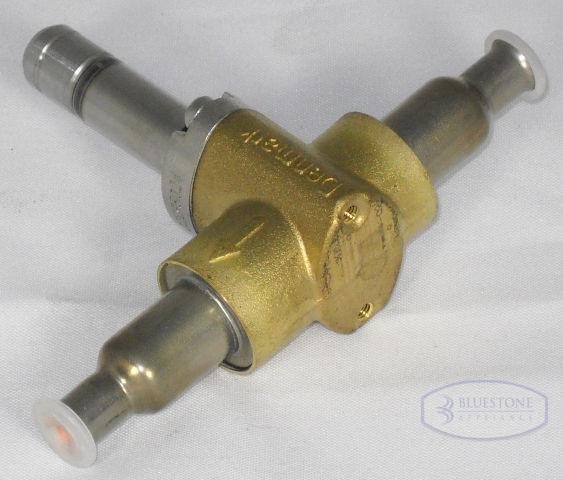

11		1854701800	Hot gas valve body(EVU3)	$69.00	T:0 and S:232
15		1811306014	Water supply pipe (020)	$35.40	T:-1 and S:406

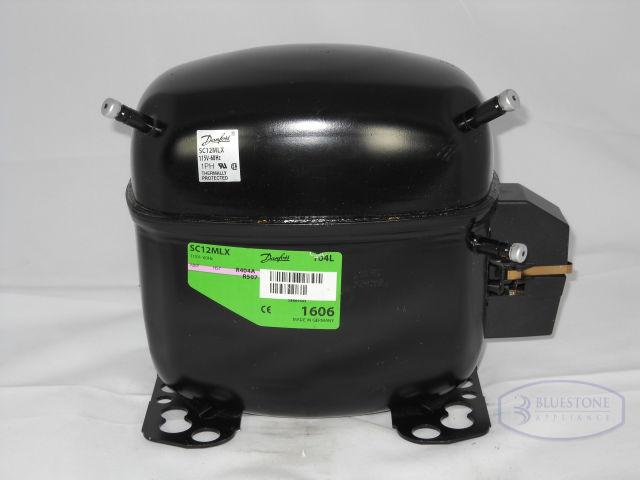

16		1858420900	Compressor	$399.00	T:0 and S:157

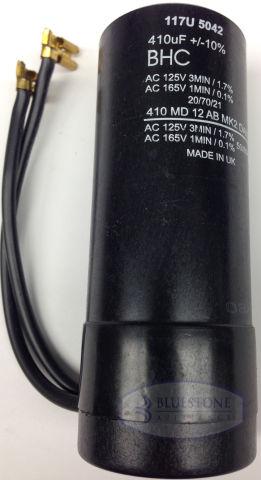

17		1858442100	Starting capacitor	$45.00	T:-2 and S:105
17.1		1858451200	Protector	$39.00	T:0 and S:6

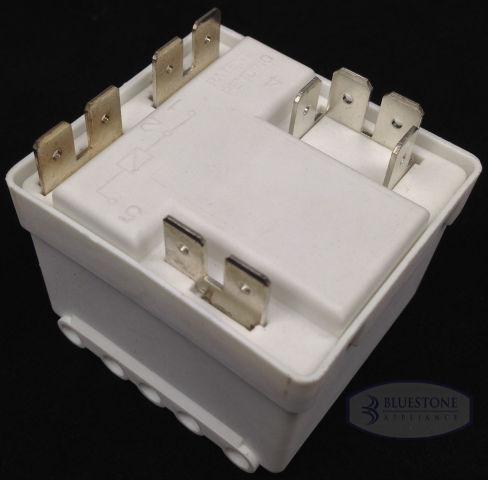

17.2		1858461000	Starting relay	$56.00	T:-3 and S:429

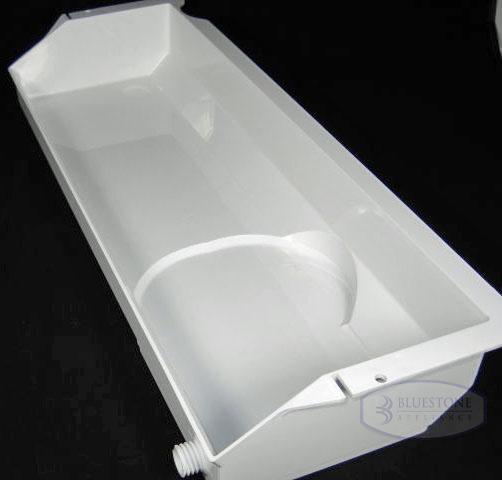

18		1864802001	Water trough	$57.40	T:21 and S:77
22		1880001701	Floater valve (replaces 1880001700)	$29.00	T:-21 and S:9687
23		1864529100	Water inlet pipe screw	$8.00	T:-3 and S:1863
24		1864500100	Water inlet pipe	$10.00	T:-3 and S:488
25		1811330100	Water out of pump	$7.90	T:-1 and S:302

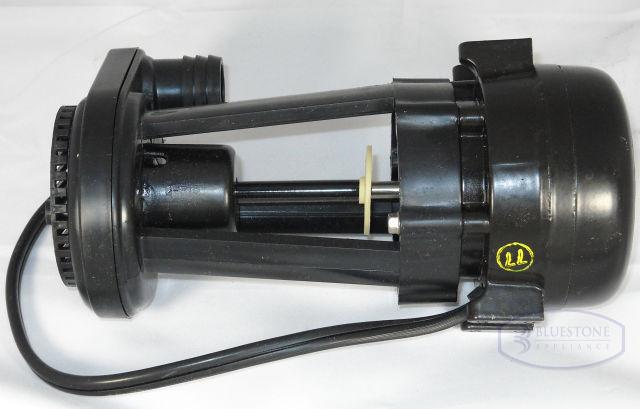

26		1858904400	water pump replaces 1858904000	$299.00	T:-2 and S:115

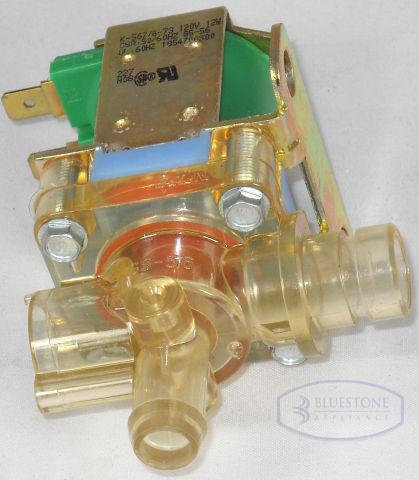

27		1864526301	Water inlet	$12.00	T:-27 and S:5711

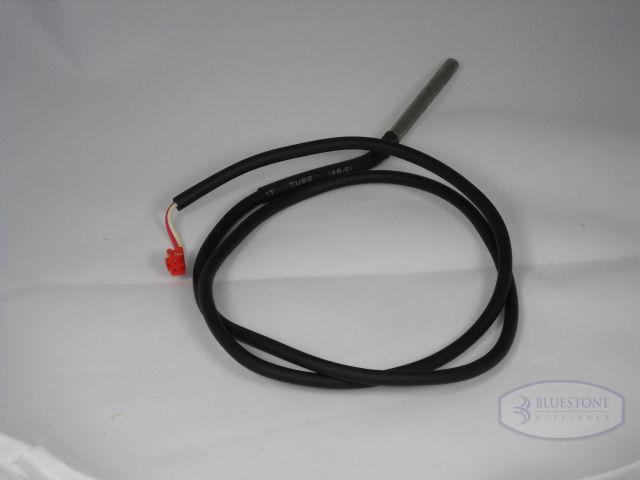

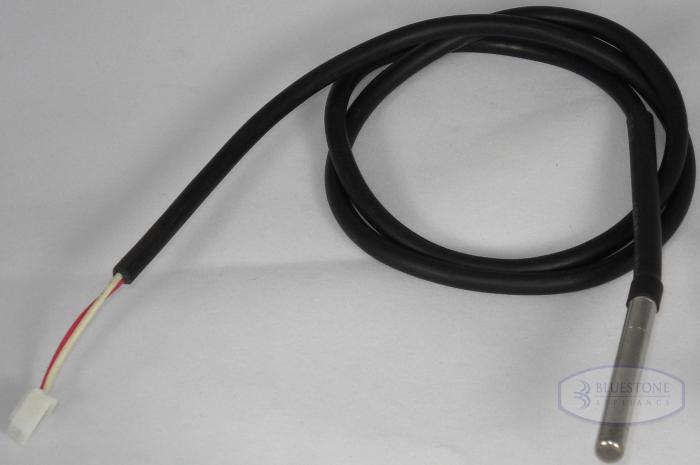

28		1851700802	Condenser sensor	$48.71	T:0 and S:166
29		1851701002	Evaporator sensor replaced by 1851700200	$25.00	T:-1 and S:1598

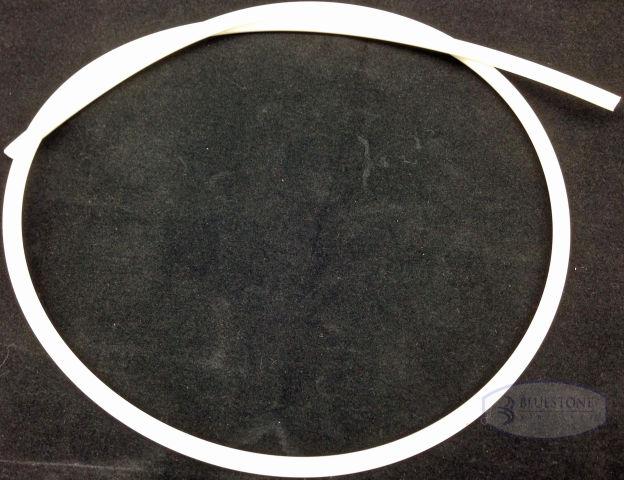

30		1864532701	Water drain pipe	$33.00	T:0 and S:79

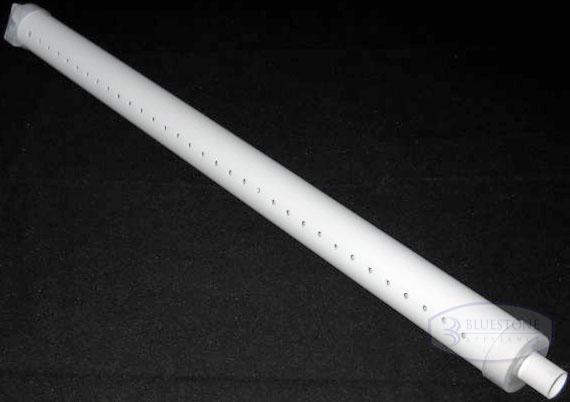

31		1880001900	Water distribution tube/sprinkler	$49.00	T:-1 and S:385

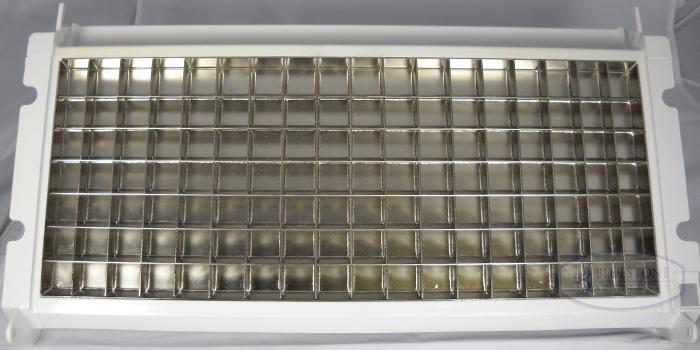

32		1880024700	Evaporator (Ice Mold)	$525.00	T:0 and S:83

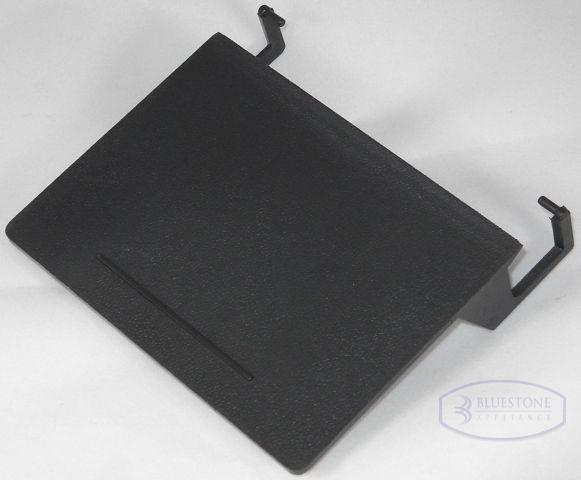

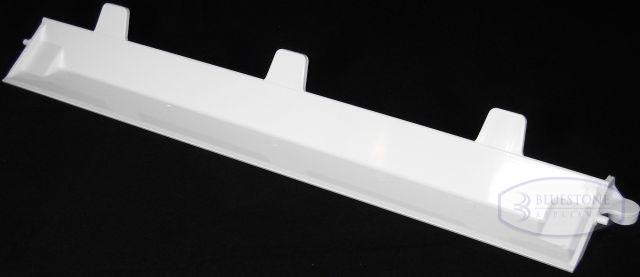

33		1861701802	Ice slideway (Bin Full probe)	$35.00	T:-1 and S:12414
35		1853701903	Wiring harness	$47.70	T:0 and S:3

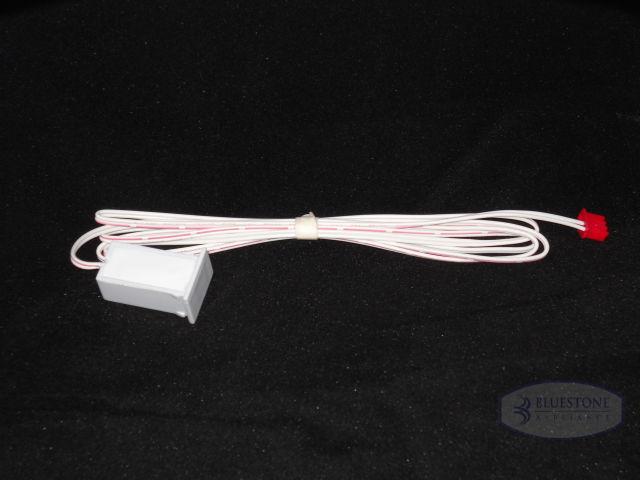

36		1854005801	Magnetism switch (5700)	$29.00	T:0 and S:5895
38		1853110500	Power cord	$17.50	T:-1 and S:225

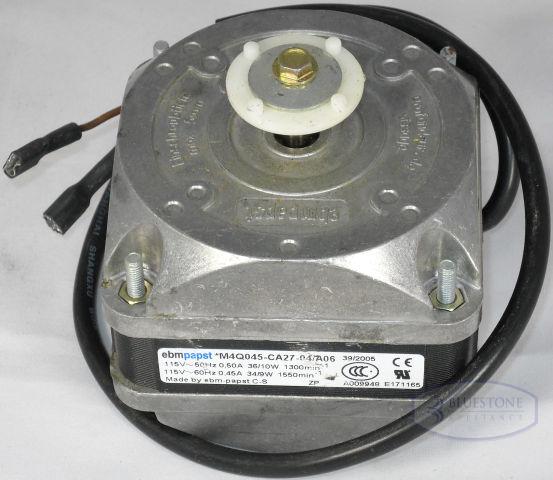

41		1858200601	EBM motor 5W	$74.40	T:-2 and S:830
42		549738100	Fan blade 248 diameter 200 X 28deg 176	$29.00	T:75 and S:593
43		1858201300	Motor 10W	$89.05	T:0 and S:307

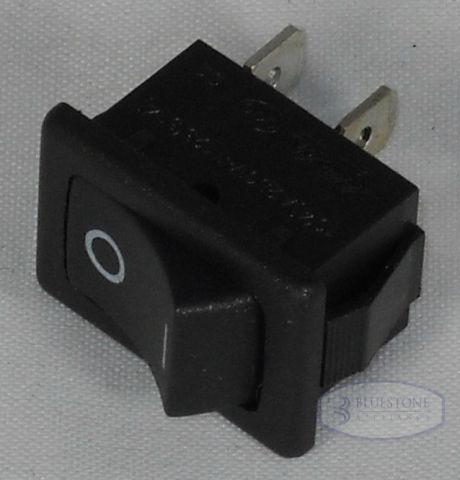

49		1854000500	Power switch	$8.40	T:-4 and S:3556
50		1864901700	Operator buttom cover	$1.10	T:-1 and S:1104

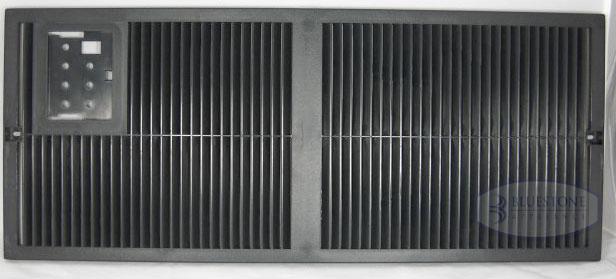

51		1860600802	Under louver	$75.90	T:0 and S:511
52		1864806902	Door Complete	$55.00	T:0 and S:1504

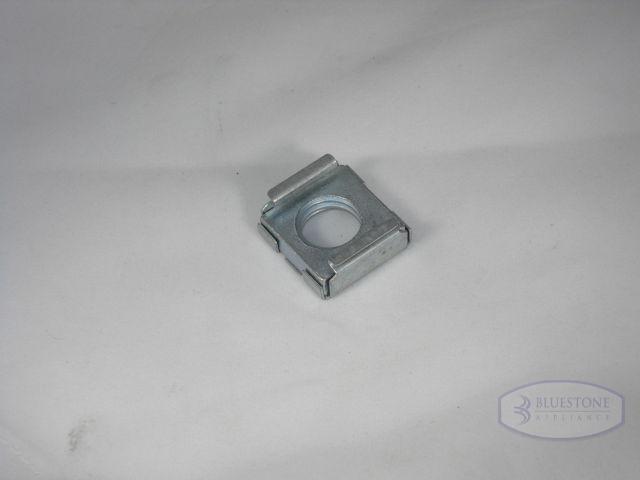

54		1803200100	Locked screw	$11.25	T:0 and S:0

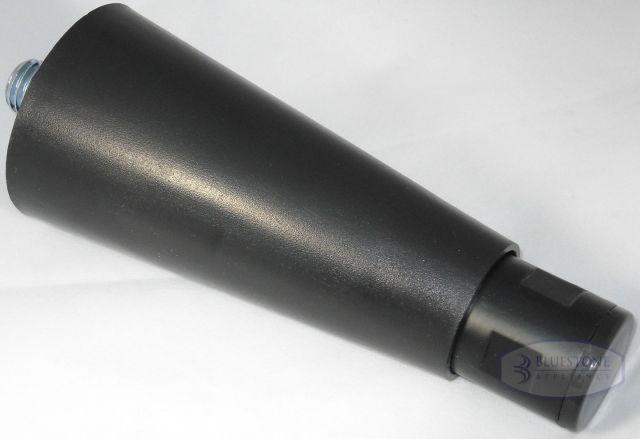

55		1880014901	Adjustable leg	$20.00	T:0 and S:10
57		1880007900	Drier	$22.50	T:0 and S:3
60		1854800300	15A Fuse of Controller	$1.99	T:-4 and S:3870
61		1854202400	Control box BCIM250 replaced by 1854207202	$210.00	T:0 and S:14
62		1880013101	Condenser	$333.70	T:0 and S:0
63		1854700800	Drain valve	$149.00	T:-9 and S:534
