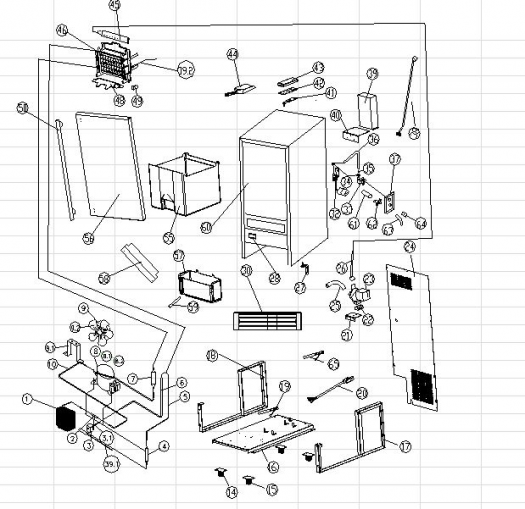

Diagram#	Image	Part No.	Description	Price	Qty
		1871017500	complete door BCIM44	$190.00	T:18 and S:3
1		1885000900	CONDENSER Not LG	$75.00	T:10 and S:0
3		1854703321	hot gas valve coil FDF2A	$49.00	T:12 and S:3
4		1880007500	Drier	$10.53	T:197 and S:1069
8		1858402100	COMPRESSOR (BCIM44 LGR)	$210.00	T:2 and S:3
8.1		1858402110	STARTING RELAY (BCIM44 LGR)	$25.00	T:7 and S:3
8.2		1858402120	OVERLOAD PROTECTION BCIM44LGR	$25.00	T:9 and S:1
9		1858200601	EBM motor 5W	$74.40	T:-2 and S:830
9.2		549738100	Fan blade 248 diameter 200 X 28deg 176	$29.00	T:75 and S:593
10		1861511601	VENT-PIPE	$9.00	T:999 and S:0
14		1880014701	Left foot	$7.00	T:0 and S:0
15		1880014801	Right foot	$7.00	T:0 and S:0
20		1853113800	Power cord	$20.50	T:10 and S:0
23		1858900600	Water pump replaces 1858900500 and 1858900900	$119.00	T:0 and S:12309
25		1864546103	Back water tube	$16.10	T:28 and S:1
26		1864512101	Pump pipe	$9.90	T:6 and S:707

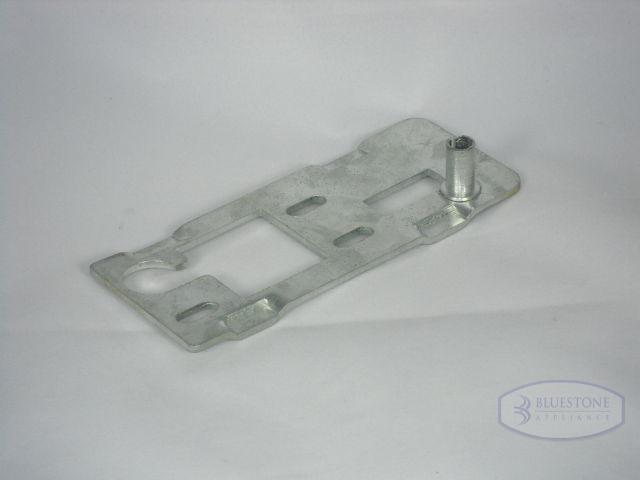

27		1860413503	Bottom Hinge	$5.00	T:0 and S:17

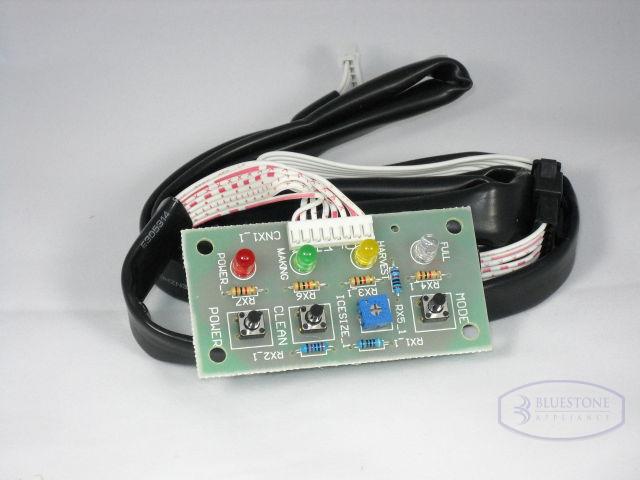

28		1854303600	Button Control Panel (with chip for controller)	$90.00	T:-2 and S:2644
30		1845744001	Louver BCIM44	$25.00	T:34 and S:1
32		1880001701	Floater valve (replaces 1880001700)	$29.00	T:0 and S:9689
33		1864526301	Water inlet	$12.00	T:-29 and S:5713
34		1864529100	Water inlet pipe screw	$8.00	T:-3 and S:1863
38		1811306020	Water supply hose	$25.00	T:123 and S:2

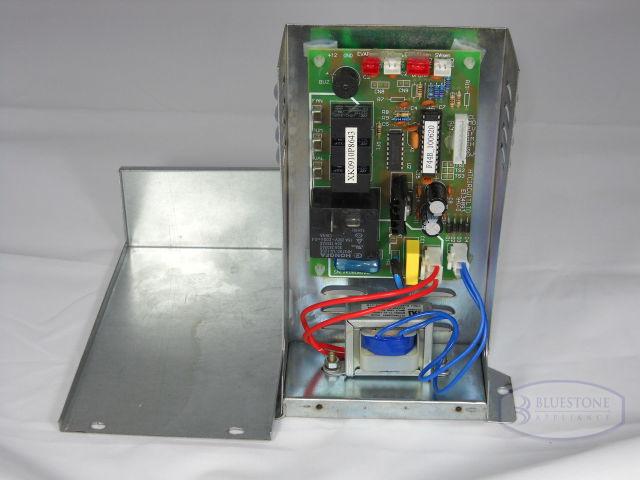

39		1854205802	Control box BCIM44 replaces 1854205800	$175.00	T:0 and S:22

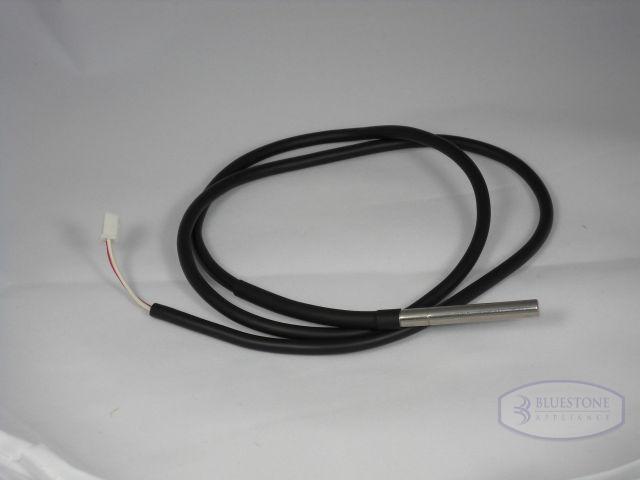

39.1		1851700401	Temperature sensor of the condenser	$36.71	T:67 and S:632
39.2		1851700501	Temperature sensor of the evaporator	$25.00	T:66 and S:1054
39.3		1854800500	3A fuse of controller	$1.15	T:585 and S:18330

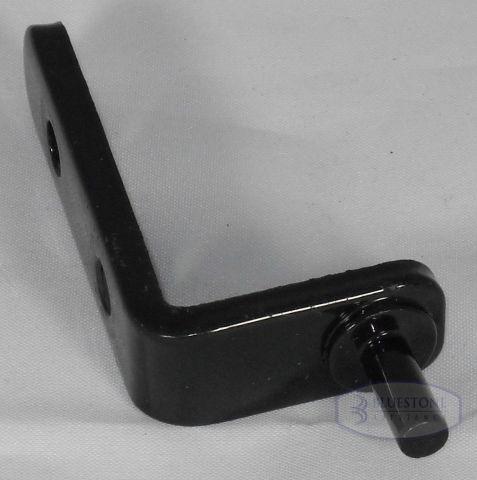

41		1860413301	Top hinge	$15.00	T:0 and S:7

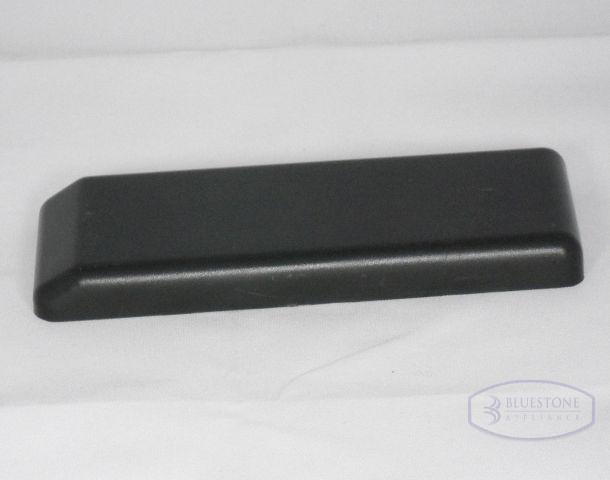

43		1864400101	Top hinge cover	$4.40	T:297 and S:7
44		1864800101	Ice scoop	$5.00	T:9 and S:0
45		1880001601	Water	$5.85	T:0 and S:0
46		1880017702	Evaporator (Ice mold)	$204.00	T:0 and S:1
48		1861701601	Ice full probe (slideway) - Replaces 1861701600	$34.00	T:-2 and S:60
49		1854005700	Magnetism switch/Ice full sensor replaces1854005801	$29.00	T:0 and S:345
50		1861701700	Handle	$17.00	T:22 and S:3
63		1811306049	Drain pipe	$25.00	T:100 and S:0
64		1864603800	Drainage plug	$1.00	T:5 and S:12
