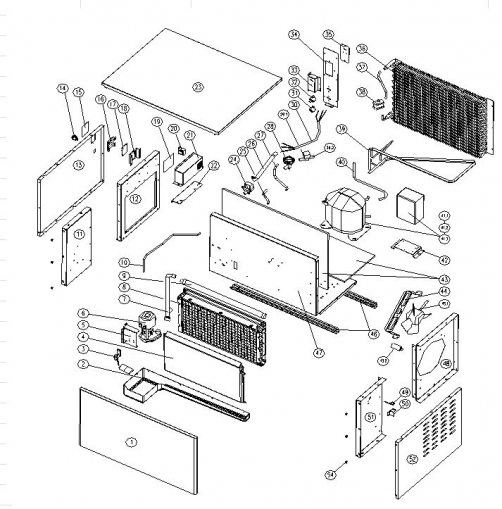

Diagram#	Image	Part No.	Description	Price	Qty

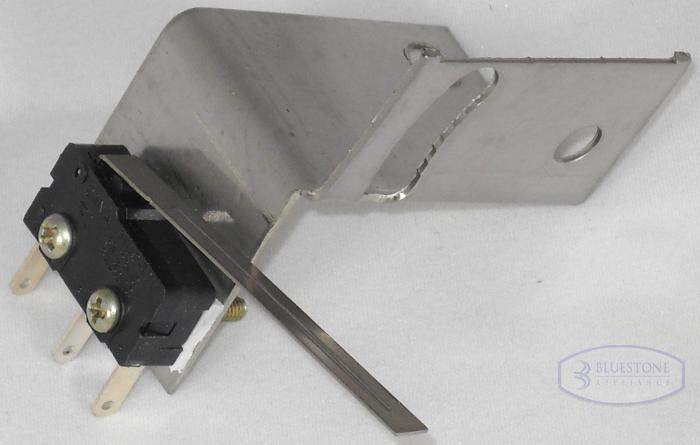

		1871018500	Microswitch	$29.00	T:0 and S:1605
0		1864509200	Gasket/Washer of water inlet connector	$1.00	T:-1 and S:1852

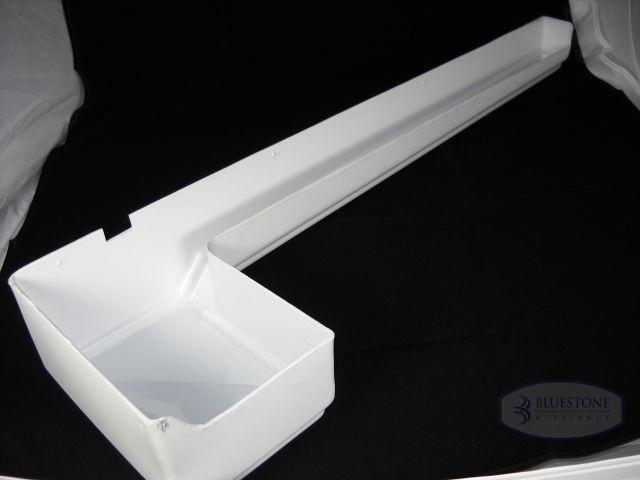

2		1864802401	Water trough	$80.00	T:0 and S:1943
3		1880001701	Floater valve (replaces 1880001700)	$29.00	T:0 and S:9689
4		1864600404	water curtain	$105.00	T:0 and S:6
6		1858904400	water pump replaces 1858904000	$299.00	T:-3 and S:116
8		1880025700	Evaporator	$499.00	T:0 and S:142
12		1864515100	Support	$35.40	T:0 and S:0

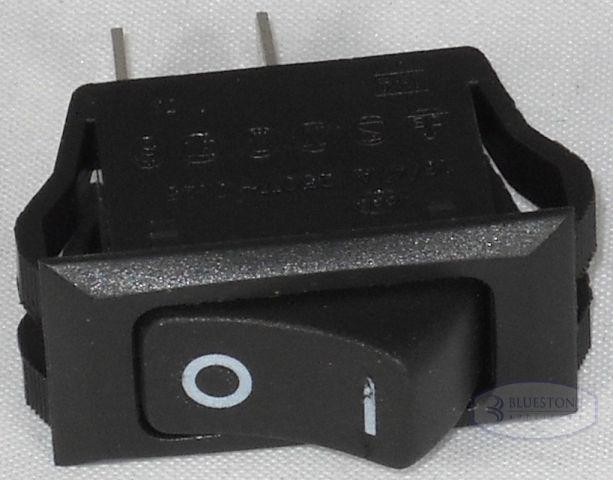

14		1854000600	Power switch	$7.00	T:-1 and S:925
16		1864500100	Water inlet pipe	$10.00	T:-3 and S:488

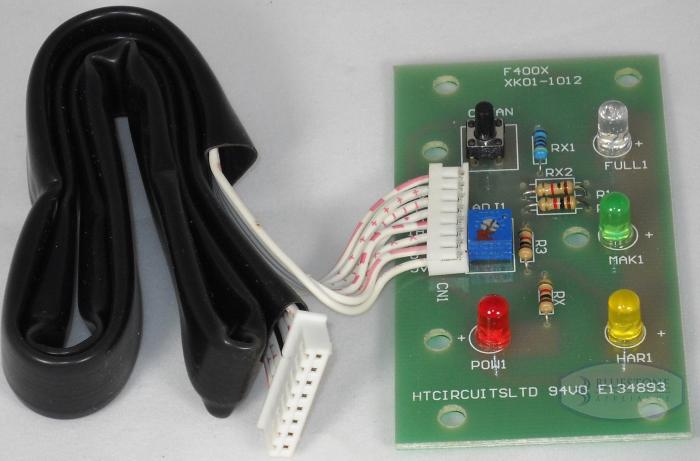

17		1854201200	Button control panel replaces 1854240300	$49.00	T:0 and S:11
17		1864529100	Water inlet pipe screw	$8.00	T:-3 and S:1863
19		1864526301	Water inlet	$12.00	T:-29 and S:5713
19		1854202301	Main control panel	$175.00	T:0 and S:26
19.1		1854800300	15A Fuse of Controller	$1.99	T:-4 and S:3870

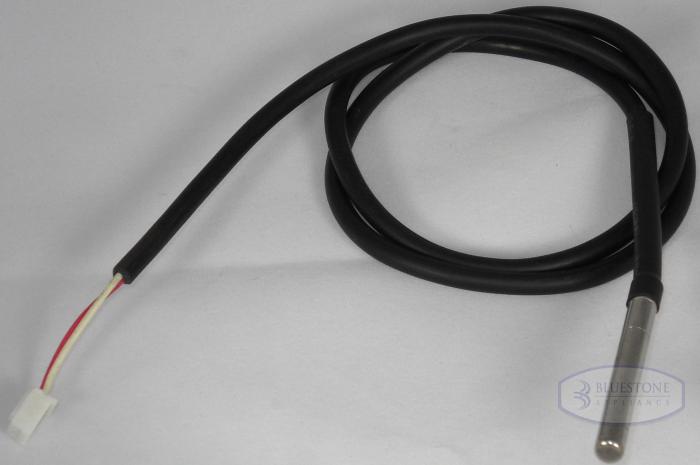

19.2		1851700700	Temperature sensor of condenser replaces 1851700802	$49.00	T:29 and S:80
19.3		1851700900	Evaporator sensor	$28.00	T:0 and S:240

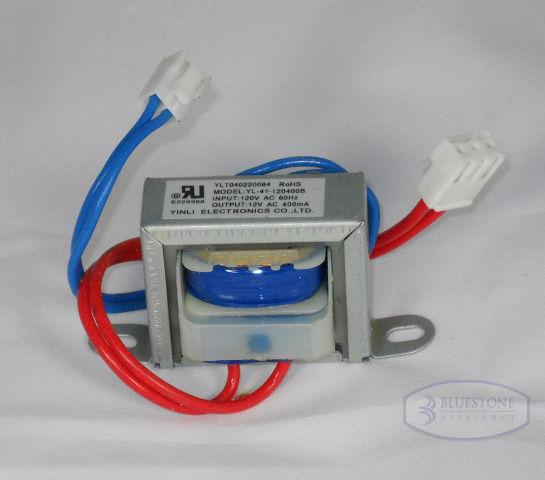

20		1858442400	Transformer	$18.00	T:-22 and S:1377
23		1860107900	Top panel	$190.50	T:0 and S:10
24		1854700800	Drain valve	$149.00	T:4 and S:536

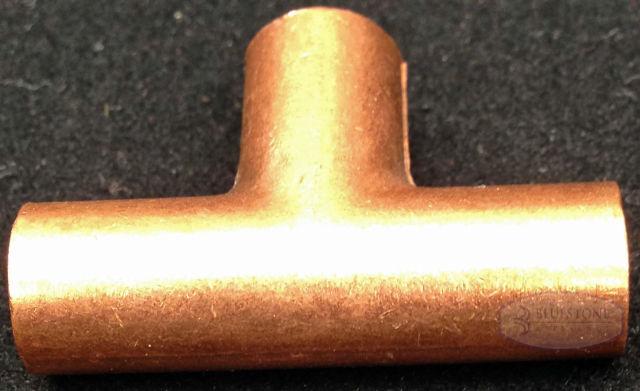

27		1861530600	T shape multi-connection pipe	$3.85	T:0 and S:74
28		1854601900	Expansion valve replaced by1854601901	$163.00	T:0 and S:520
29		1861530300	Multi-connection pipe	$3.00	T:0 and S:73
29.1		1854702800	Hot gas valve body	$84.85	T:0 and S:221
29.2		1854702700	Hot gas valve coil	$41.40	T:0 and S:370
30		1853702003	Wiring harness	$50.10	T:0 and S:0
35		1854601100	Expansion valve	$298.30	T:0 and S:0
36		1880013203	Condenser	$220.40	T:0 and S:0
36		1880014001	Condenser	$399.00	T:0 and S:0
38		1880007900	Drier	$22.50	T:0 and S:3

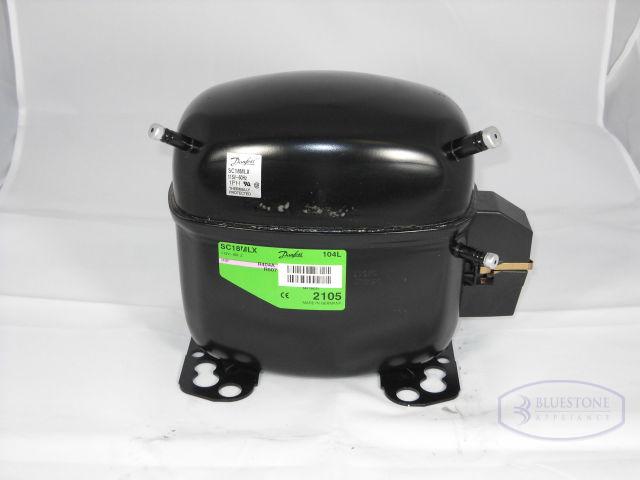

41.1		1858421200	Compressor	$599.00	T:0 and S:461

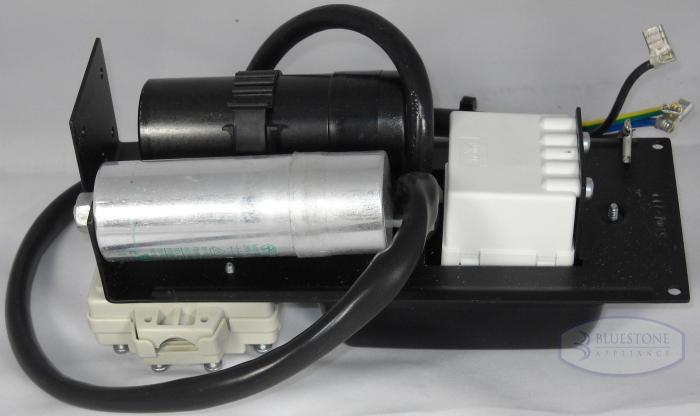

41.2		1858441400	Starting device component	$181.00	T:-1 and S:156

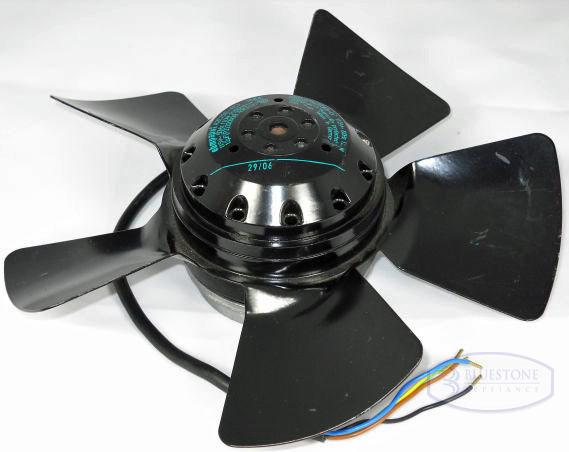

45.1		1858202100	Condenser fan motor	$140.00	T:0 and S:679

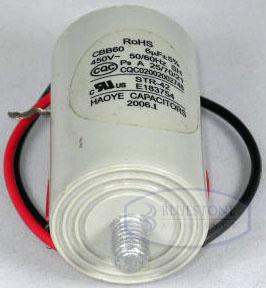

45.2		1858441500	Fan motor capacitor(6uf)	$37.45	T:0 and S:371
50		1864650201	Knob	$2.80	T:0 and S:2
52		1880002000	Water distributor tube	$22.50	T:0 and S:151
53		1811330100	Water out of pump	$7.90	T:-1 and S:302
56		1864207200	Drain pipe	$32.70	T:0 and S:1
57		1864523300	Drain pipe connector	$1.45	T:0 and S:1

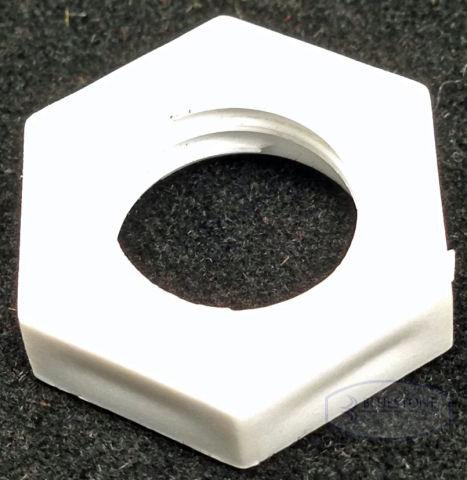

58		1864523400	Drain pipe hex nut	$3.75	T:0 and S:1
59		1864508100	Drain plug	$4.00	T:0 and S:730
60		1864619100	Drain nut	$3.75	T:0 and S:81
