Diagram#	Image	Part No.	Description	Price	Qty

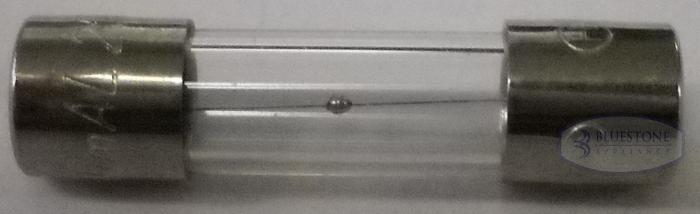

		1854800200	0.5A fuse of controller	$4.95	T:158 and S:1354

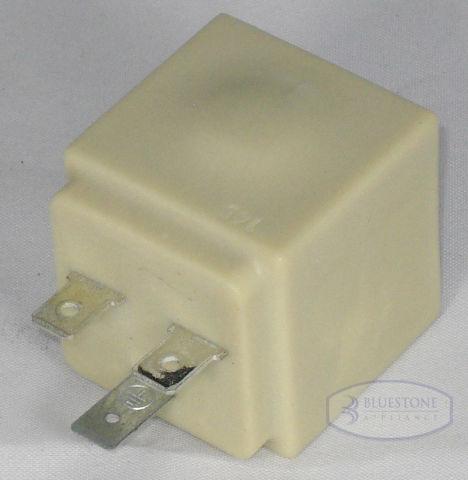

		1858460800	Relay	$15.00	T:6 and S:3
		1858450000	Overload	$14.95	T:8 and S:4
		1854200302	Control box replaced by 1849738401 and 1849738404	$199.00	T:0 and S:10377

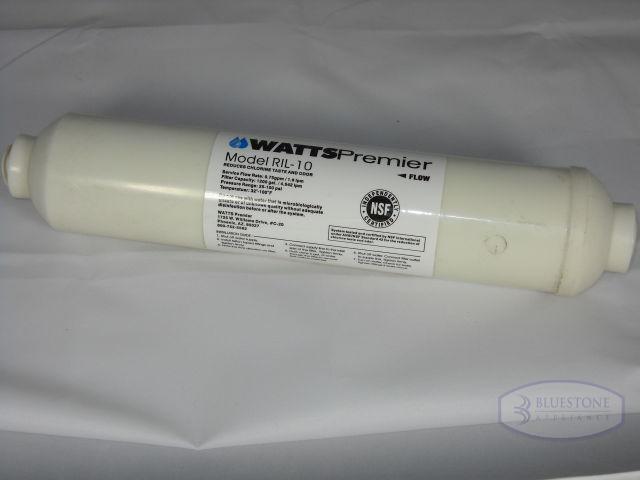

		1880002110	Water filter	$50.00	T:5 and S:1914

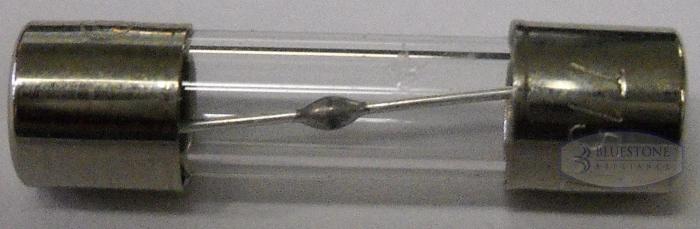

		1854800300	15A Fuse of Controller	$1.99	T:-4 and S:3870
2		1849738401	Control Box BCIM replacement for 1854200302	$210.00	T:-1 and S:808

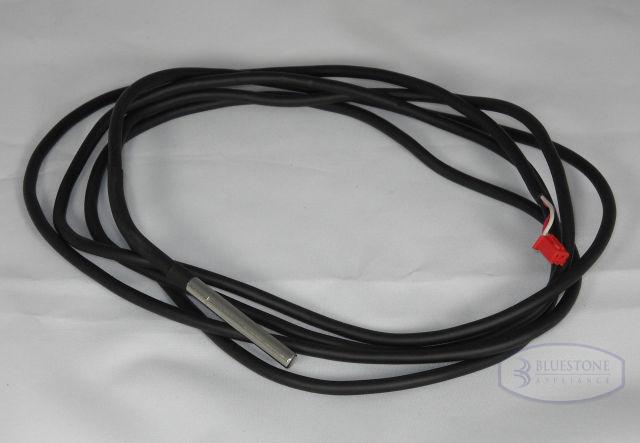

2.1		1851700100	Temperature sensor of condenser	$31.00	T:11 and S:2154
2.2		1851700200	Temperature sensor of evaporator replaces 1851701002	$25.00	T:6 and S:6407
3.1		1880014200	Left foot	$5.70	T:80 and S:240
3.2		1880014300	Right foot	$5.70	T:30 and S:317

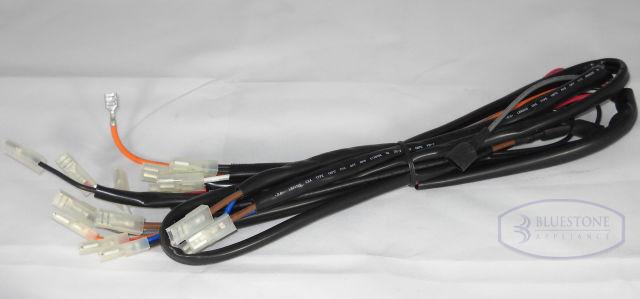

4		1853700403	Wiring harness	$27.55	T:3 and S:78

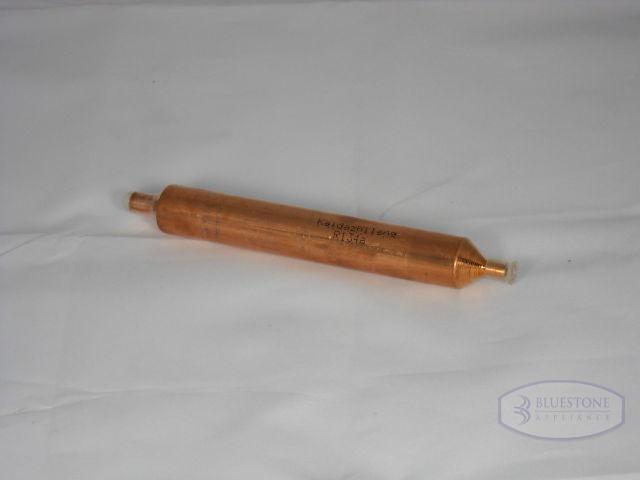

5		1880007500	Drier	$10.53	T:197 and S:1069

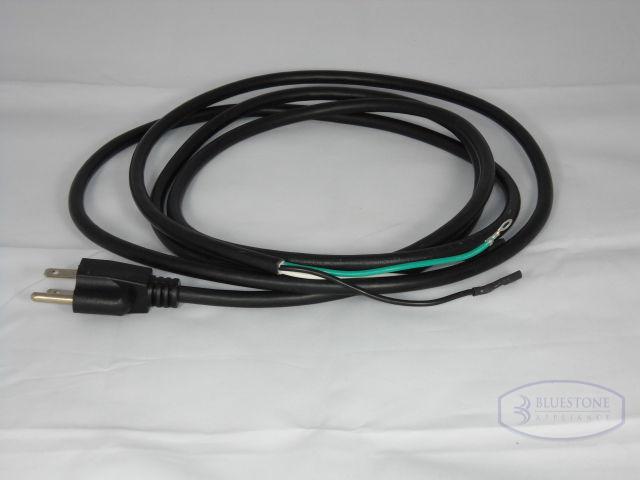

7		1853110500	Power cord	$17.50	T:-1 and S:225

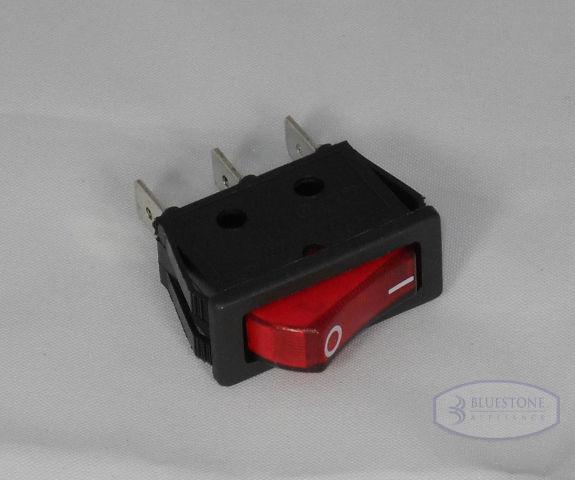

8		1854000101	Power switch	$13.00	T:23 and S:4756

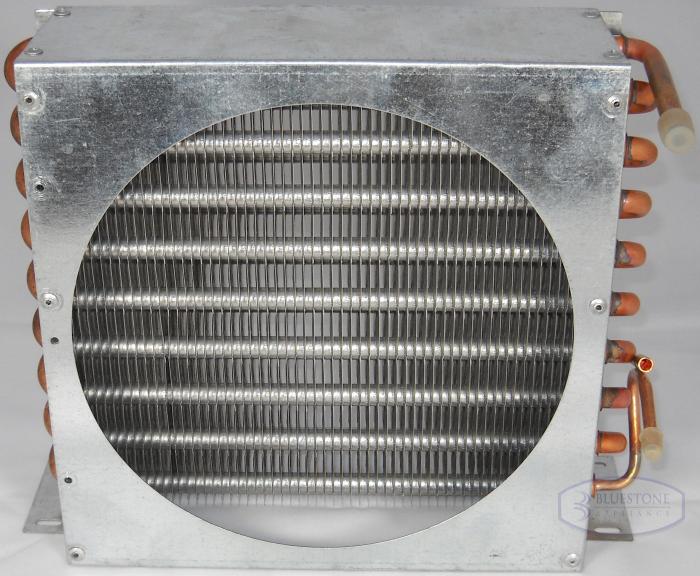

9		1880012901	Condenser	$119.00	T:7 and S:3
11		1854701210	Hot gas valve coil (042N4212)	$43.00	T:-2 and S:1197

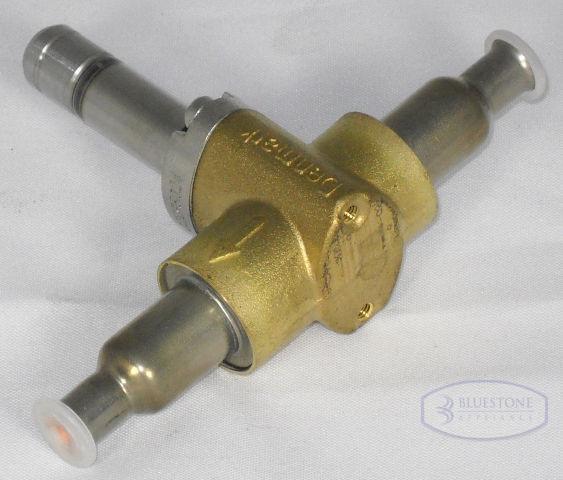

11.1		1854701220	Hot gas valve body(EVU2)	$69.30	T:11 and S:1035

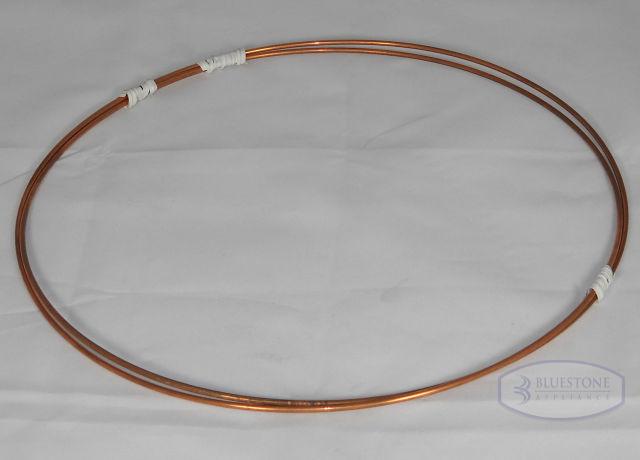

12		1805000200	Capillary tube	$6.75	T:193 and S:298

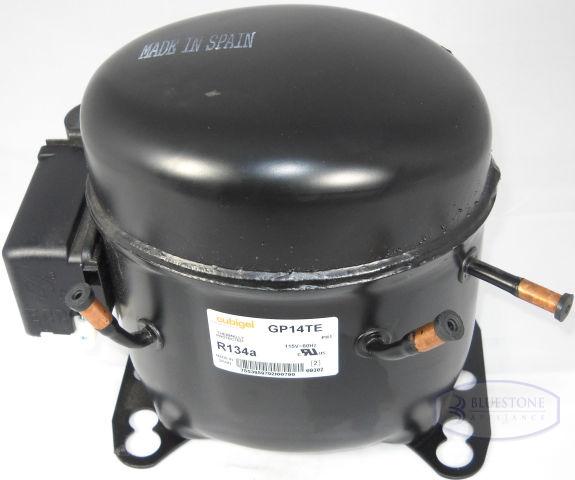

16		1858400100	Compressor	$295.00	T:13 and S:295

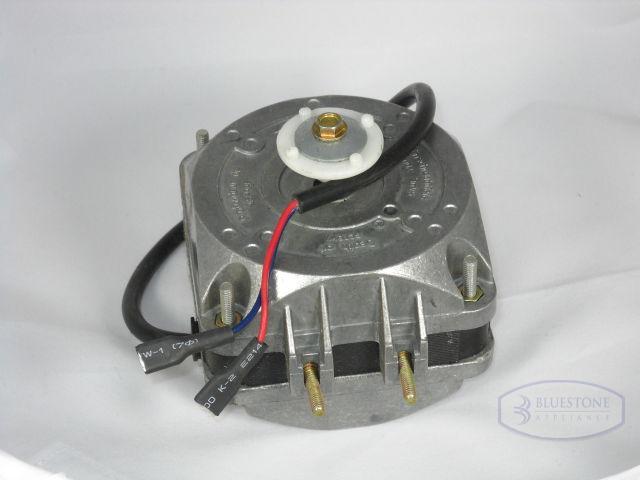

18		1858200601	EBM motor 5W	$74.40	T:-2 and S:830
18.1		1860700100	Fan blade and phi 200X28 and deg	$5.00	T:8 and S:2

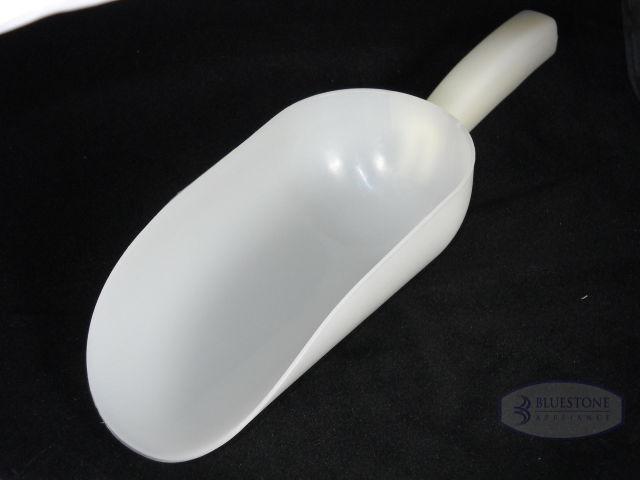

20		1864800100	Ice scoop	$9.95	T:4 and S:3905

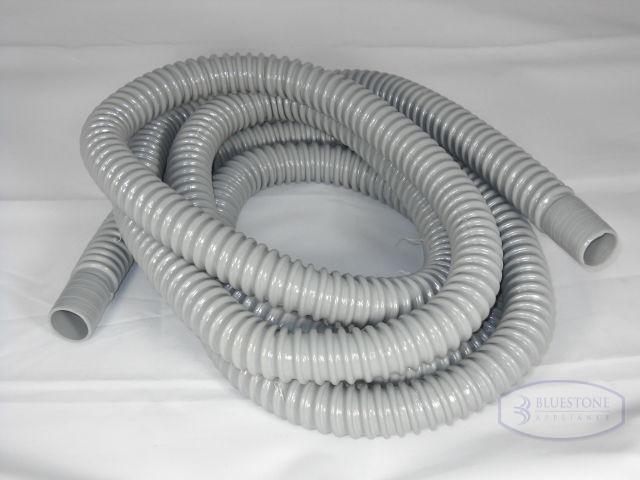

27		1864506100	Long drain pipe	$27.00	T:6 and S:2296

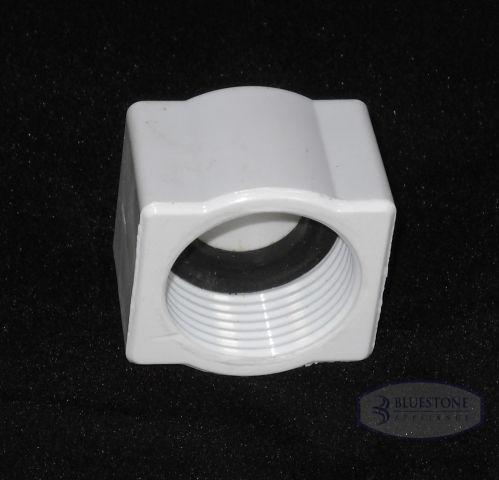

28		1864538100	Nut of the draining hole(including the rubber gasket)	$2.20	T:226 and S:1410

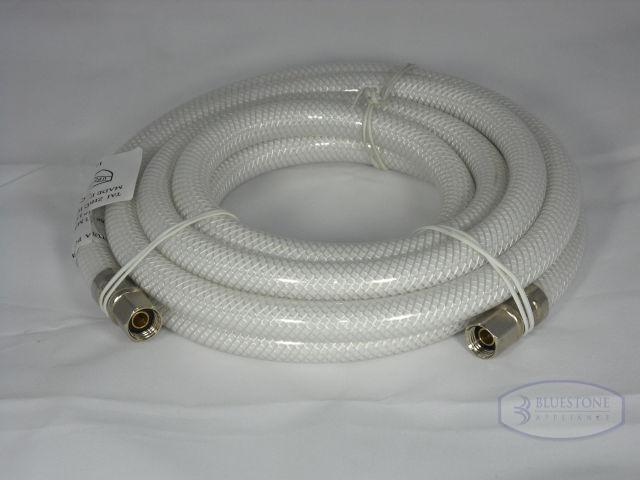

29		1811306014	Water supply pipe (020)	$35.40	T:-1 and S:406
31		1854703200	Water inlet valve	$79.00	T:0 and S:12337
32		1864529100	Water inlet pipe screw	$8.00	T:-3 and S:1863

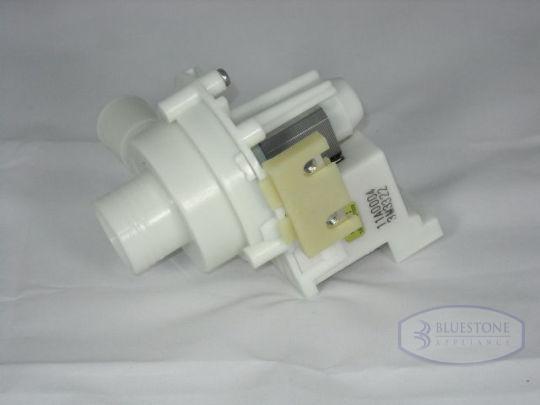

38		1858900600	Water pump replaces 1858900500 and 1858900900	$119.00	T:0 and S:12309

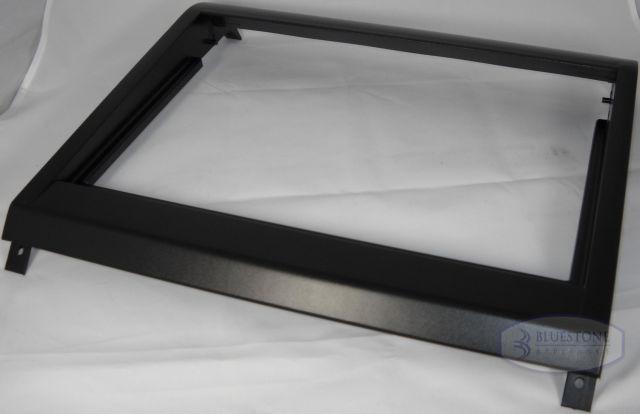

45		1864806201	Door frame	$57.00	T:10 and S:159

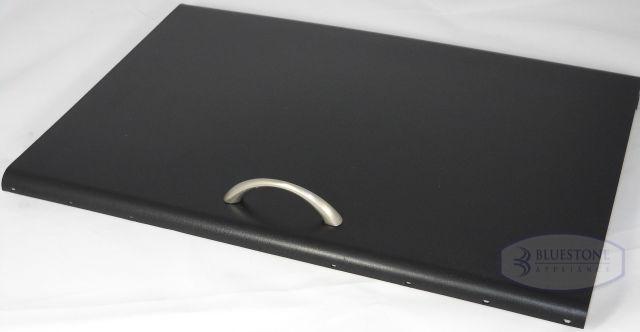

46		1864806600	Door 1	$49.00	T:0 and S:2745

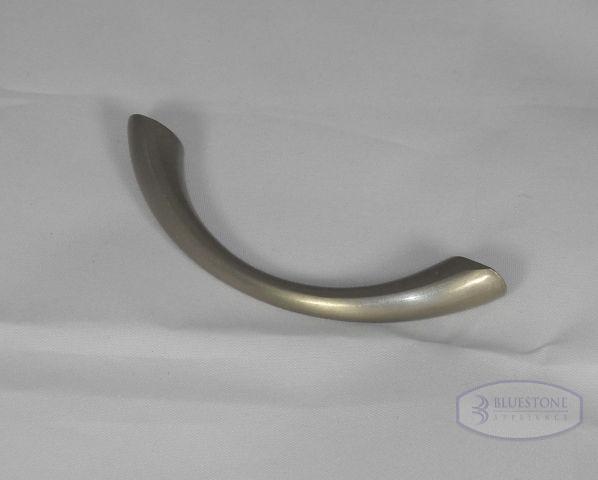

48		1861702200	Door handle	$5.75	T:42 and S:294

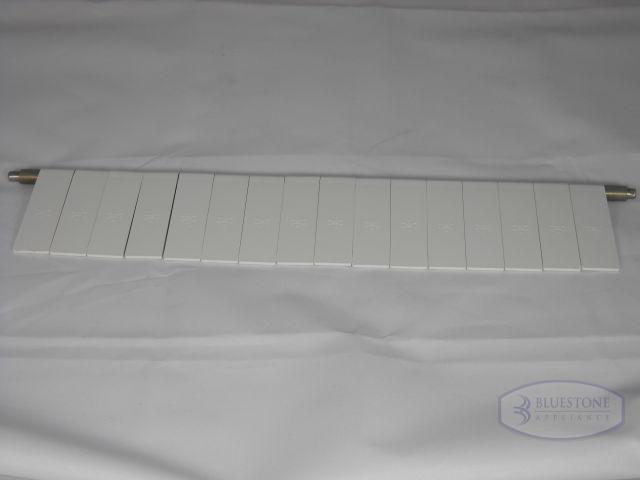

49		1880024201	Evaporator (ice mold)	$199.00	T:27 and S:73
54		1864803400	Rubber of sprinkler	$7.00	T:50 and S:421

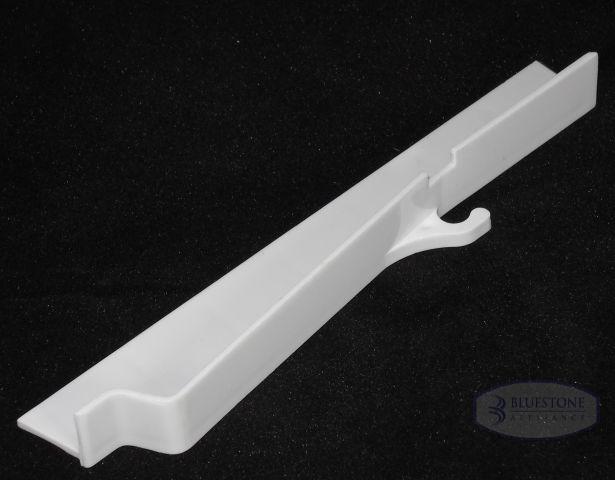

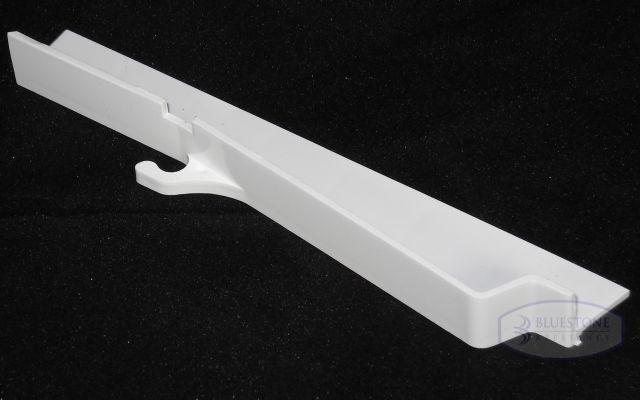

58		1861700703	Ice slideway	$36.85	T:45 and S:948

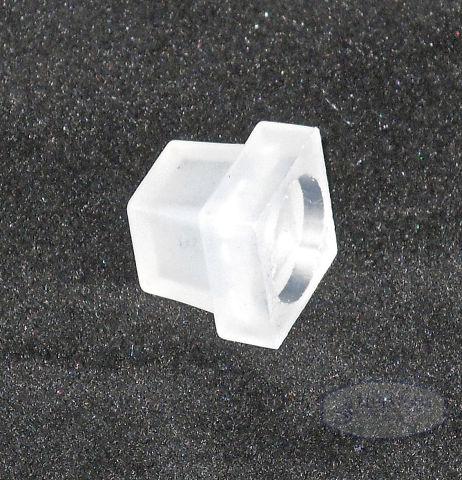

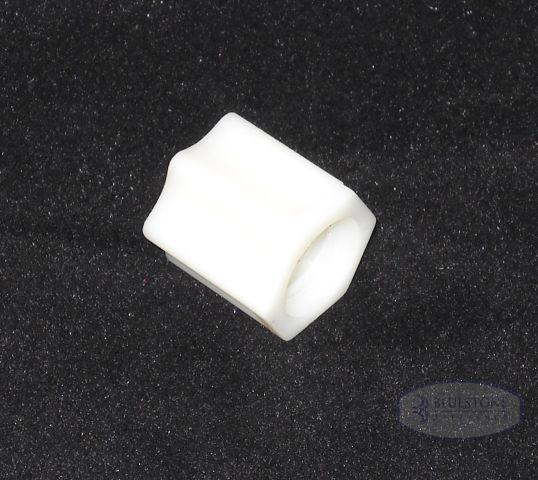

59		1864612100	Small nozzle	$2.50	T:-151 and S:25465
60		1864603200	Small plug of sprinkler	$8.00	T:41 and S:1133

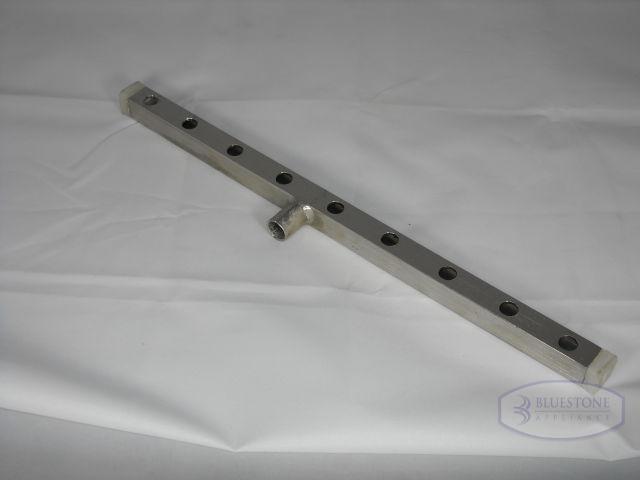

61		1861400700	Sprinkler	$28.80	T:97 and S:303
63		1864801701	Water bin	$58.30	T:-3 and S:8
64		1861703200	Left flake	$12.00	T:59 and S:620
65		1864600200	Flake cover	$35.00	T:0 and S:1598
66		1861703300	Right flake	$12.00	T:55 and S:470

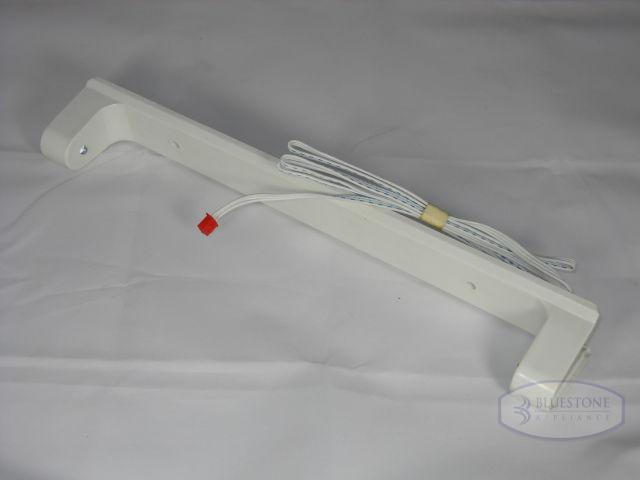

73		1855501200	Ice full sensor	$19.90	T:44 and S:7979
