Diagram#	Image	Part No.	Description	Price	Qty
		810800100	Screwdriver	$2.50	T:10 and S:0
		833100200	Small wheel	$7.50	T:2 and S:0
		810800200	Snap ring	$0.10	T:40 and S:0

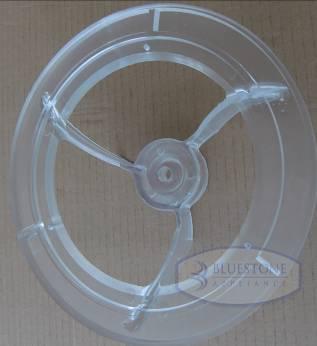

		850100100	Stirring wheel	$45.00	T:0 and S:1
		852000100	Top cover	$32.50	T:1 and S:0
		852900100	Top cover(with label)	$37.50	T:30 and S:0
		833000200	Up-Bearing	$10.00	T:0 and S:0
		866000200	Wire	$8.00	T:0 and S:0
		833000100	Axes	$10.00	T:0 and S:0
		886000100	Carton	$10.00	T:15 and S:0
		833000300	Down-Bearing	$13.00	T:0 and S:0
		885000800	Down-Foam	$10.00	T:10 and S:0
		853700300	Left label of rear cover	$5.00	T:10 and S:0
		852900200	Front cover(with label)	$20.00	T:6 and S:0
		833000400	Front support	$10.00	T:0 and S:0
		847000200	Handle	$1.00	T:20 and S:0

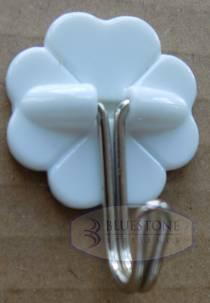

		855000900	Hook	$0.50	T:10 and S:0
		852000600	Ice duct	$3.00	T:6 and S:3
		832001200	Ice PIc	$2.50	T:0 and S:0

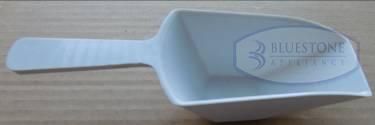

		850100500	Ice scoop	$2.50	T:19 and S:1
		853700100	Left label of front cover	$2.50	T:10 and S:0
		852000300	Base unit	$39.00	T:4 and S:0

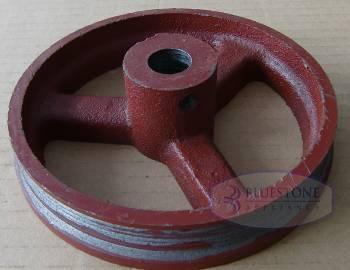

		833100100	Big wheel	$15.00	T:2 and S:0
		824000700	Blade support (with blade)	$20.00	T:7 and S:3
		822000200	Clapboard	$10.00	T:0 and S:0

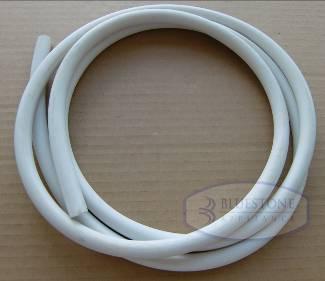

		844000100	Drain pipe	$5.00	T:20 and S:0
		853100200	Logo label	$1.00	T:6 and S:0

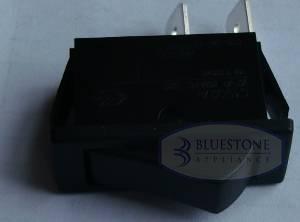

		868000600	Power switch	$7.00	T:17 and S:3

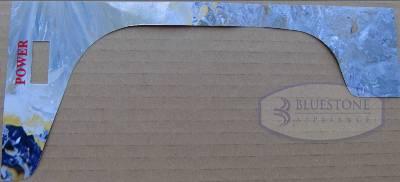

		853700500	Left label of top cover	$2.75	T:10 and S:0
		852000500	Rear cover	$25.00	T:0 and S:0
		852900300	Rear cover(with label)	$30.00	T:5 and S:0
		833000500	Rear support	$10.00	T:0 and S:0
		853700200	Right label of front cover	$2.50	T:10 and S:0
		853700400	Right label of rear cover	$5.00	T:10 and S:0

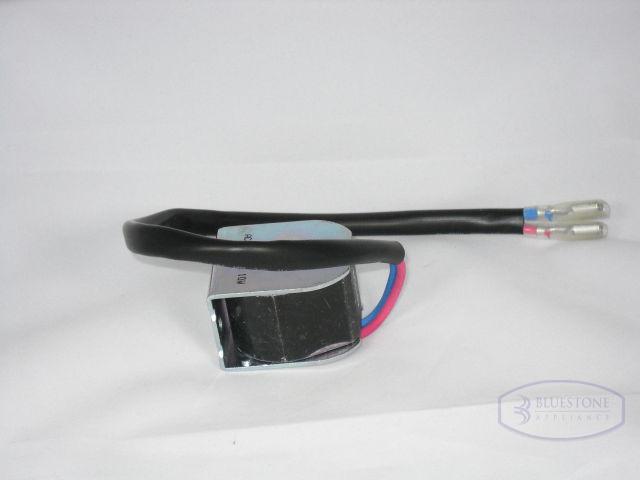

		1854703321	hot gas valve coil FDF2A	$49.00	T:12 and S:3

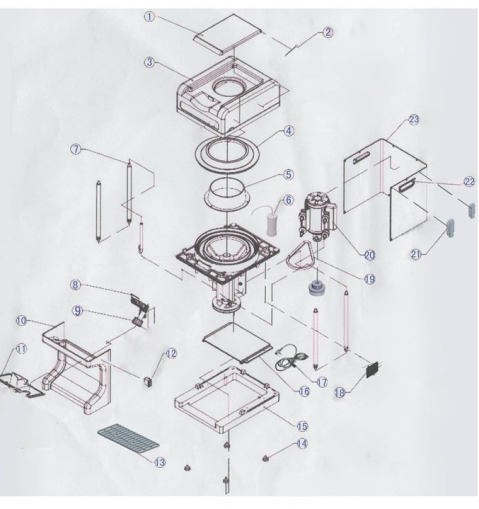

1		852000200	Lid	$7.50	T:8 and S:10

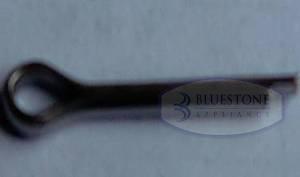

2		807083101	Pin	$0.50	T:16 and S:4
4		850100200	Big water-proofing ring	$12.00	T:6 and S:0
5		850100300	Small water-proofing ring	$9.00	T:6 and S:0
6		870001100	Motor starting capacitor	$7.50	T:3 and S:3

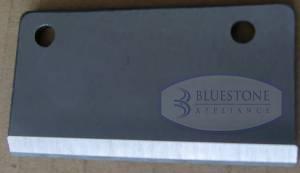

8		832001100	Blade	$10.00	T:39 and S:1

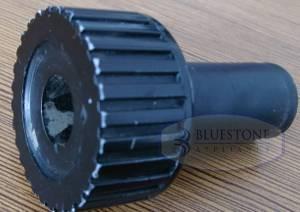

9		850000100	Blade adjustment knob	$1.50	T:29 and S:1

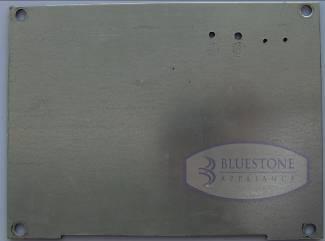

13		852000800	Water leakage plate	$2.50	T:10 and S:0
14		880000200	Foot	$1.00	T:22 and S:0
17		866800200	Power cord	$10.00	T:6 and S:0
18		868000500	Lid switch	$7.50	T:5 and S:4

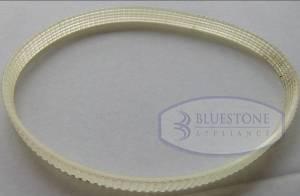

19		846000200	Belt	$8.00	T:0 and S:11
20		862000200	Motor	$130.00	T:2 and S:2

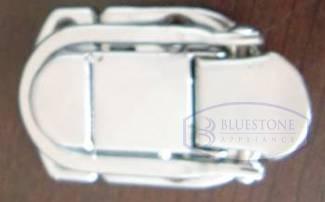

21		827000500	Lock	$2.50	T:0 and S:0
