Diagram#	Image	Part No.	Description	Price	Qty
		1853702600	Wiring harness	$29.00	T:9 and S:1

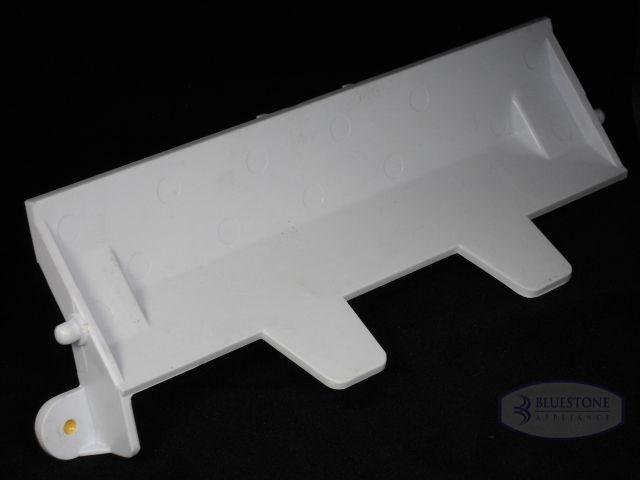

		1860614680	Splash Guard	$25.00	T:20 and S:16

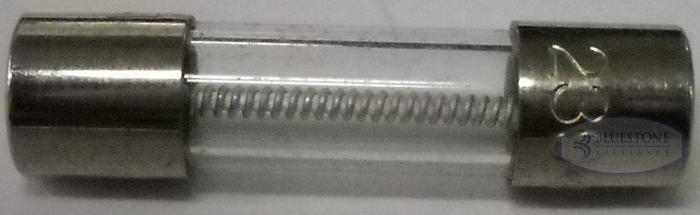

		1854800500	3A fuse of controller	$1.15	T:586 and S:18329
3		1885000900	CONDENSER Not LG	$75.00	T:10 and S:0
4		1861511601	VENT-PIPE	$9.00	T:999 and S:0
5		1858402100	COMPRESSOR (BCIM44 LGR)	$210.00	T:2 and S:3

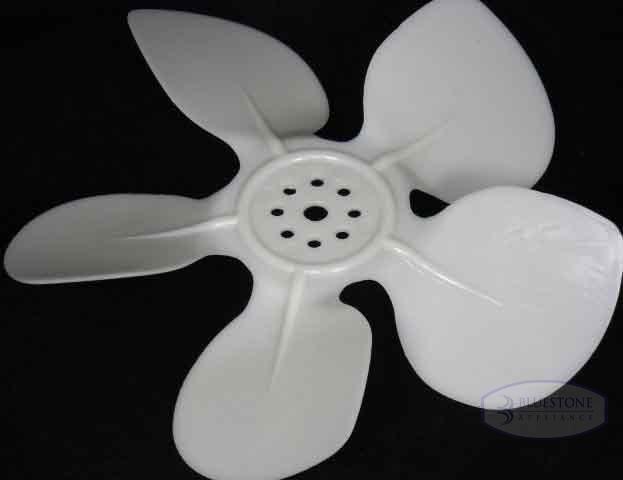

9.1		549738100	Fan blade 248 diameter 200 X 28deg 176	$29.00	T:75 and S:593
20		1861701601	Ice full probe (slideway) - Replaces 1861701600	$34.00	T:-2 and S:60

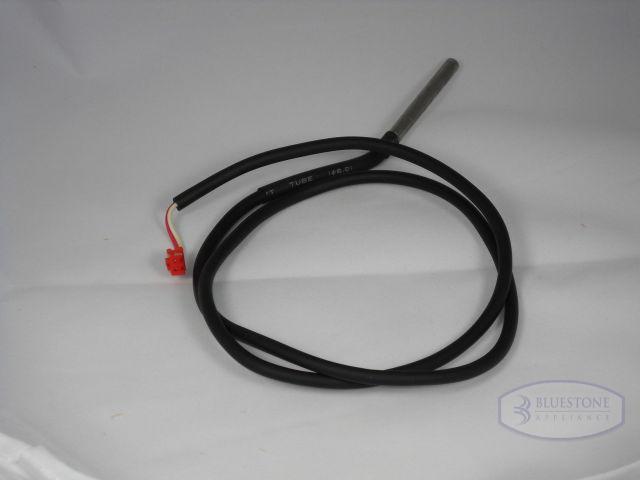

21		1851700501	Temperature sensor of the evaporator	$25.00	T:50 and S:1050

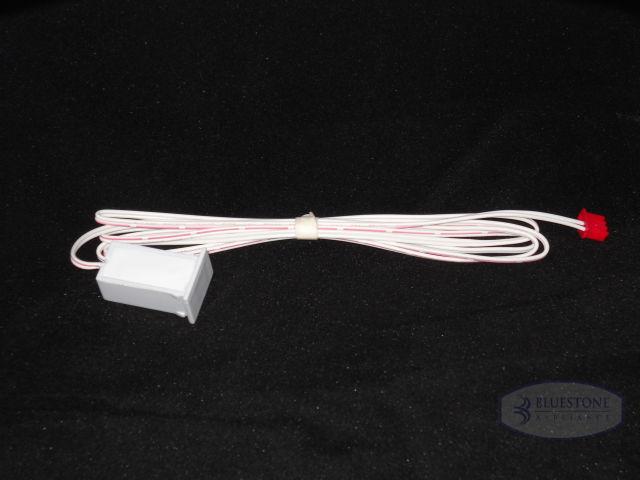

22		1854005700	Magnetism switch/Ice full sensor replaces1854005801	$29.00	T:0 and S:345
25		1864800101	Ice scoop	$5.00	T:9 and S:0
26		1864400201	Top hinge cover	$4.30	T:10 and S:0
28		1860413301	Top hinge	$15.00	T:0 and S:7
30		1849738301	CONTROL BOX	$165.50	T:1000 and S:0

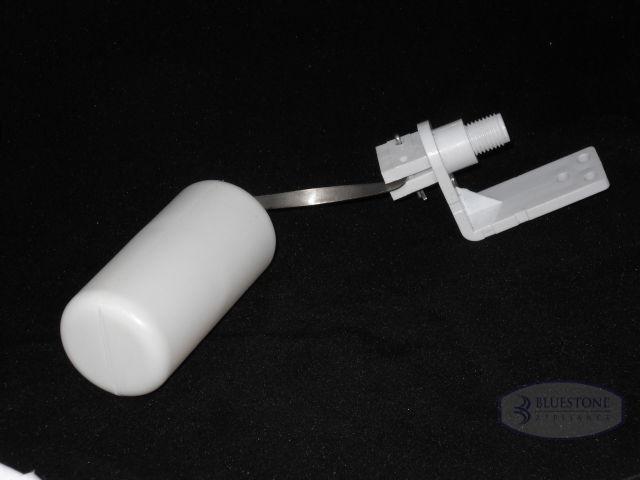

33		1880001701	Floater valve (replaces 1880001700)	$29.00	T:-21 and S:9687

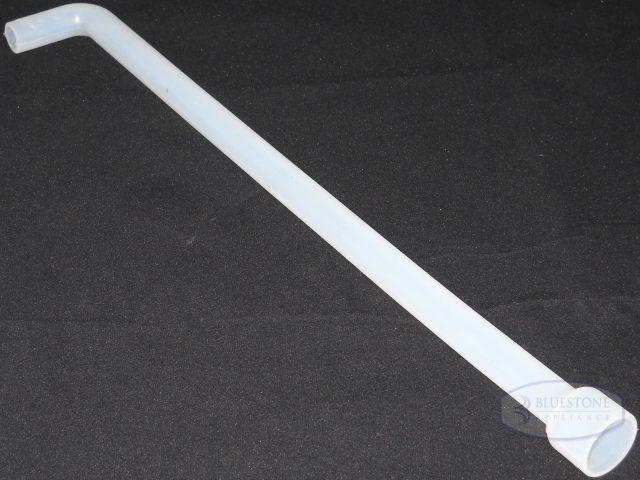

39		1864512101	Pump pipe	$9.90	T:6 and S:707
40		1864546103	Back water tube	$16.10	T:28 and S:1
41		1858900600	Water pump replaces 1858900500 and 1858900900	$99.00	T:0 and S:12306
46		1853113800	Power cord	$20.50	T:10 and S:0
49		1811306020	Water supply hose	$25.00	T:123 and S:2

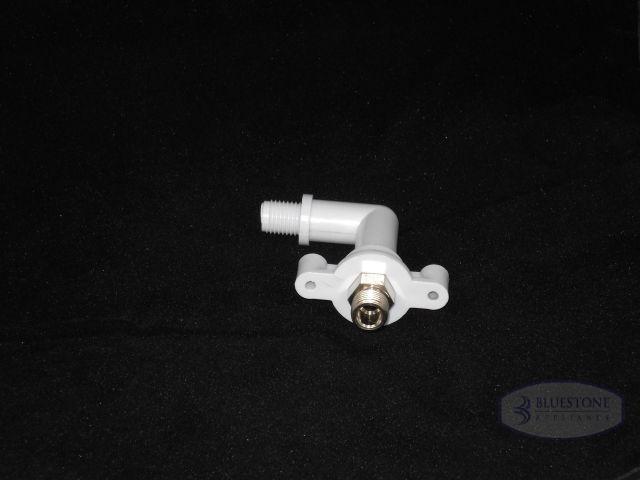

51		1864526301	Water inlet	$12.00	T:-27 and S:5711
53		1811306049	Drain pipe	$25.00	T:100 and S:0
54		1864603800	Drainage plug	$1.00	T:5 and S:12

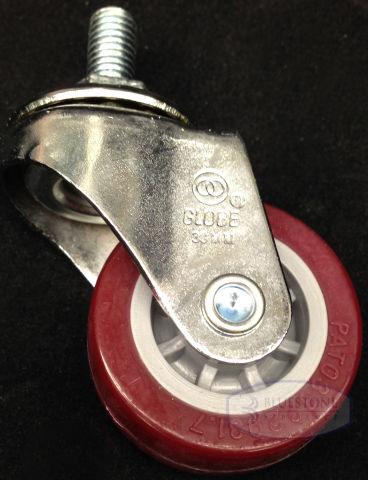

58		1880015300	Rear roller/ Versatile Caster	$6.00	T:0 and S:10

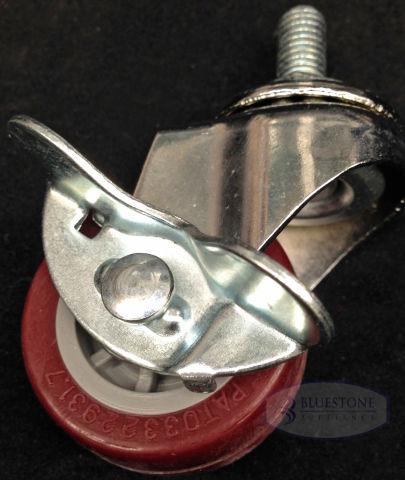

59		1880015400	Front roller/ Brake Caster	$6.00	T:0 and S:10
64.1		1854000700	Clean switch	$6.50	T:46 and S:76
64.2		1854000900	Power ON/OFF switch	$5.50	T:26 and S:78
67		1880007500	Drier	$10.53	T:197 and S:1069
